1.5T MRI

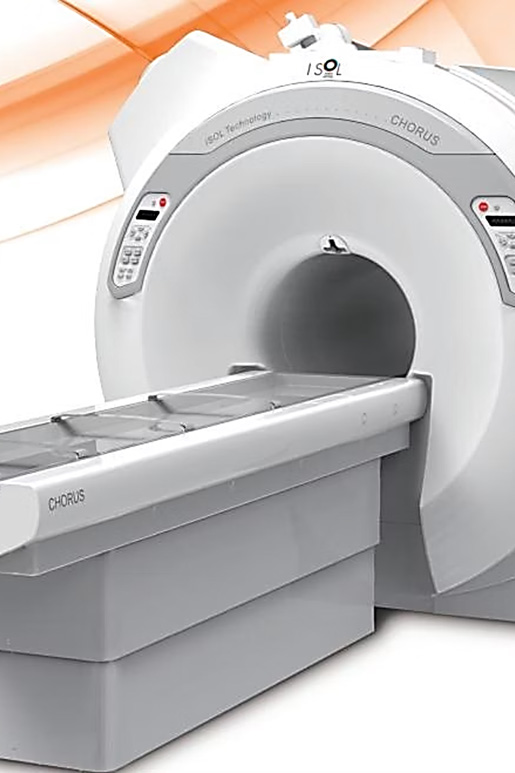

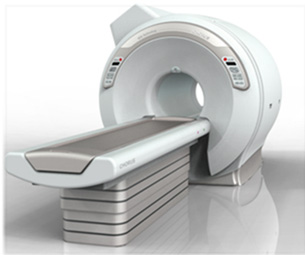

CHORUS 1.5T MRI: The New Millennium Frontier in Medical Imaging

Welcome to the future of diagnostic excellence with ISOL-Coretech's CHORUS 1.5T Whole Body Magnetic Resonance Imager.
As healthcare demands evolve in the new millennium, advanced medical technology becomes increasingly vital to enhancing human health and happiness worldwide

CHORUS: Clinically Proven Excellence

  • CHORUS represents a clinically proven and evolved system featuring not only a complete range of routine clinical imaging protocols but also a comprehensive bundle of advanced application packages.

    At its core, CHORUS adopts the latest superconducting magnet technology designed for both routine clinical imaging covering up to 50cm spherical volume and sophisticated advanced applications.

    The system's powerful 8/16 /32 channel rf subsystems deliver exceptional image quality combined with fast imaging capability. The fully automated scan operation requires no interruption, maximizing scan throughput and operational efficiency.

    Advanced Engineering

    The CHORUS superconducting magnet represents the pinnacle of MRI technology, combining compact, ergonomic design with exceptional performance characteristics. With a large bore diameter and short length configuration, the system provides both patient comfort and clinical versatility.

    The magnet's innovative design achieves zero helium consumption or as an option helium free, reducing operational costs while maintaining peak performance standards.

    Superconducting Magnet Technology

    • HeFree Supercon MagnetNo Helium Consumption
      No Helium Refill
      Length 1.57m
      5G Line 4.0x2.5m
      Target Homogeneity: 1 ppm Vrms over 45cm

    • Gradient SystemGradient Strength std 27 MT/m
      option 35 mT/m
      Slew Rate: std 100 T/m/s
      option 125 T/m/s
      Water Cooled

    • RF CoilsStandard RF Coils(8/16ch)
      Body, Head, Knee, T/L Spine, C Spine
      Surface(GP), Shoulder
      Pelvic/Abdomen
      Wrist, Elbow(option)

  • 1.5T MRI

Comprehensive Application Package

  • CHORUS offers an extensive suite of imaging techniques and application packages designed to meet diverse clinical needs. The platform supports sophisticated imaging protocols including Fast Flair, STIR, and Magnetization Transfer Contrast for enhanced tissue characterization.

    Advanced 3D imaging capabilities include 3D Gradient Echo, 3D Fast Gradient Echo, and 2D/3D SSFP/b-SSFP sequences. The system excels in vascular imaging with TONE pulse imaging and 2D/3D TOF with auto tracking pre-saturation.

    Core Imaging Techniques

    • · Spine Echo and Gradient Echo
      · Dual Spin Echo and Fast Spin Echo (up to 128 ETL)
      · Fast Flair, STIR, and Magnetization Transfer Contrast
      · 3D Gradient Echo and 3D Fast Gradient Echo
      · 2D/3D SSFP/b-SSFP sequences

      Advanced Applications

      · Single Shot Fast Spin Echo (up to 240 ETL)
      · SE-EPI, GE-EPI, Single Shot and Multi Shot EPI
      · Diffusion Weighted EPI for functional imaging
      · 2D/3D Post Processing with MIP
      · Dynamic Imaging Evaluation and Advanced Image Filter

    • 1.5T MRI

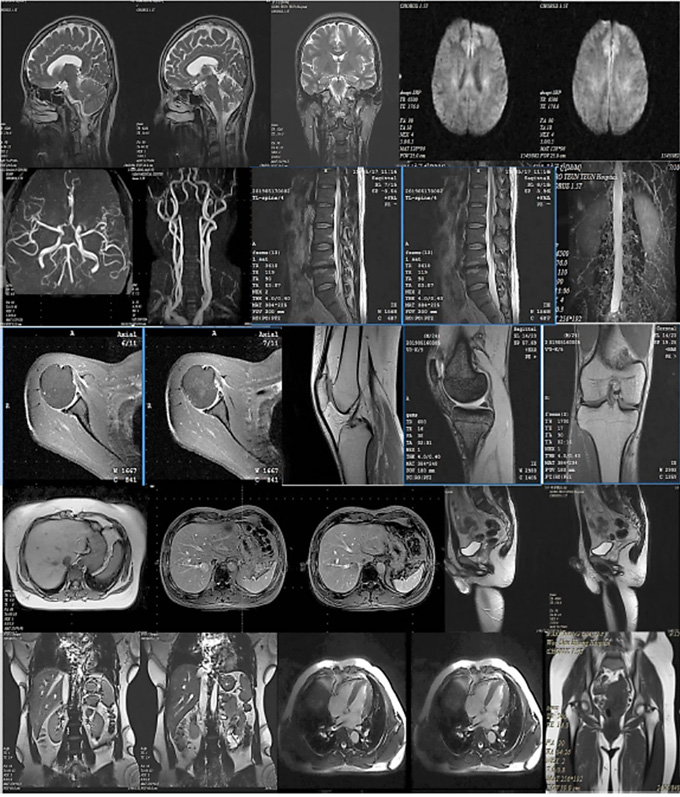

    Clinical Image Quality

    CHORUS delivers exceptional diagnostic image quality across all anatomical regions and clinical applications. The system’s advanced imaging capabilities produce crystal-clear visualization of brain structures, spinal anatomy, musculoskeletal systems and abdominal organs. With support for multiple imaging planes including axial, sagittal, and coronal slices, clinicians gain comprehensive diagnostic perspectives for accurate patient assessment.

    The combination of powerful gradient systems, multi-channel receiver technology and sophisticated pulse sequences ensures consistent, reproducible results. Whether performing routine examinations or advanced specialized studies, CHORUS provides the image quality and diagnostic confidence that modern healthcare demands.
